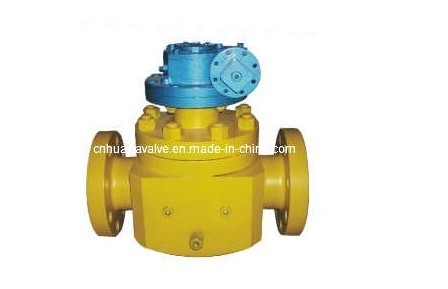

ball  valve  FEATURES:

Top entry

Size: NPS2"~56"
Rating: Class150~2500
Material: WCB, LCB, LCC, WC6, WC9, CF8, CF8M, CF3, CF3M, 4A, 5A
A105, LF2, F11, F22, F304, F316, F304L, F316L, F51, F53

Design and manufacture standards: API 6D, BS 5351, API 608, ASME B16.34
Face to face standards: ASME B16.10, API 6D, DIN 3202,
End flange dimension: ASME B16.5(for NP ≤ 24); ASME B16.47 series B, API 605 or ASME B16.47 series A, MSS SP-44 (for NPS bigger than 24), ISO 7005-1, JIS B2238, BS 12627

BW end dimension: ASME B16.25
Socket-weld dimension: ASME B16.11
Test standards: API 598, AP16D, BS 6755, ISO 5208

Constructions:
Two-piece body, Three-piece body
Double Block & Bleed
Bi-direction sealing
Seat and stem sealant injections
Anti-static device
Blow-out Proof Stem
Fire safe as per API607
Full bore, Reduced bore

Operation: Lever, Gear, Electrical actuator, Pneumatic actuator
