Detailed Product Description

Applicable Standards

Ball valve : ANSI B16.34 / API6D / BS5351

Face to face: ASME B 16.10

Design Threaded Std: ASME B 1.20.1/ EN 10226-2/ EN ISO-228-1

Inspection and test : API 598 / API 6D

Products Description :

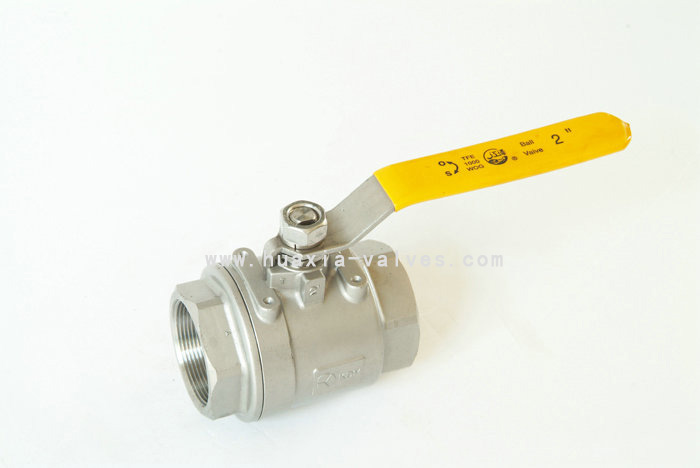

Products name:2PC Threaded Stainless Steel Ball Valve

Ball valve  Size: 1/2"~4"

Pressure Rating:1000PSI/2000PSI

Threaded ends: R/Rc/Rp/G  NPT/NPSC/NPTF/NPSF  Rd

Ball Type: Floating Ball

Port Type:Full Bore

Material: WCB, WC6, WC9, LCB, CF8, CF3, CF8M, CF3M, CN7M, Monel and Hast. etc.

Ball and Stem: SS304, SS316,SS304L,SS316L,SS410,SS416.etc.

Valve Seat: PTFE / RPTFE / PCTFE / VITON / PEEK / DEVLON . etc.

Operation: Manual

Application:Offshore /Oil /Gas /Chemical /Petrochemical /Pulp /Paper /Water /Wastewater /Marine

Notes: The specifications can be designed and satisfied for customers' special requirements

We have obtained Certificates of CE, API 6D, API 607, TS and ISO 9001.
