Detailed Product Description

Applicable Standards:

Ball valve : ANSI B16.34 / API6D / BS5351

Fire safe   : API 607

Anti static : API 608

Face to face: ASME B 16.10

Flange ends : ASME B 16.5

Inspection and test : API 598 / API 6D

Products Description :

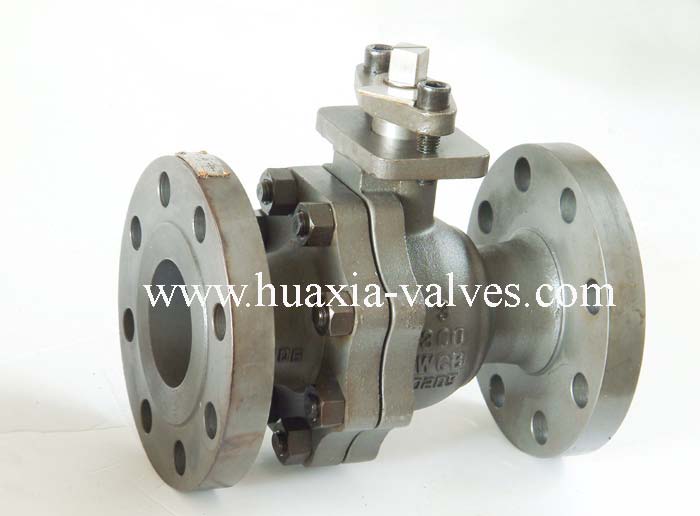

Products name: Split body Reduced Bore Flanged Ball Valve

Size: 1/2-10

Pressure Rating:CLASS300

Flanged end& Blow-out proof stem& Fire safe construction& Anti static device

Ball Type: Floating Ball

Port Type: Reduced Bore

ISO 5211 Mouting pad

Material: WCB, WC6, WC9, LCB, CF8, CF3, CF8M, CF3M, CN7M, Monel and Hast. etc.

Ball and Stem: SS304, SS316,SS304L,SS316L,SS410,SS416.etc.

Valve Seat: PTFE / RPTFE / PCTFE / VITON / PEEK / DEVLON . etc.

Operation: Manual

Application:Offshore /Oil /Gas /Chemical /Petrochemical/Pulp /Paper /Water /Wastewater /Marine

Notes: The specifications can be designed and satisfied for your special requirements

We have obtained Certificates of CE, API 6D, API 607, TS and ISO 9001
