Detailed Product Description

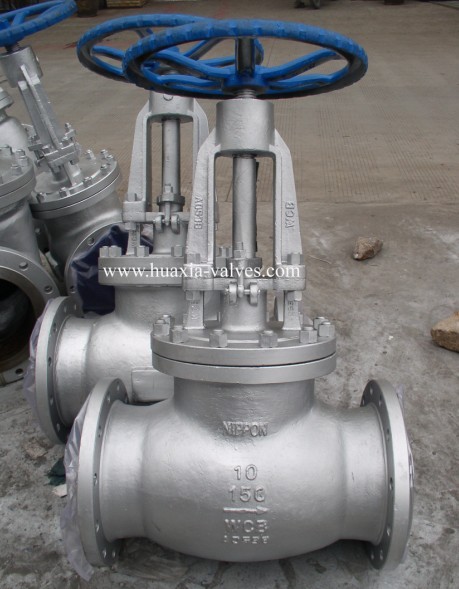

VATAC cast globe valve, ISO CE and API Approved
Size: 2"~32"
Rating: CL150~CL2500
Materials: C.S, S.S, IRON, DUPLEX etc.

Cast Flanged Globe Valves are with Features & Specifications as below:
Design & Manufacture:ANSI B16.34, BS 1873
OS&Y Construction, Bolted Bonnet

Full Port Or Reduced Bore
Size Ranges: 2" to 24"N.B.
Pressure Ratings: ANSI 150, 300, 600, 900
End Connections:Flanged, Buttweld, Socket Weld, Hub Connectors, Compact Flange or other proprietary connections
Materials Available in:WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent, Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials;Various trim materials are available to suit service conditions
Actuations:Manual, Electric, Hydrau-Pneumatic Actuator
To MR 0175 and MR 103 upon Request

Notes: The specifications can be designed and satisfied for customers' special requirements

We have obtained Certificates of CE, API 6D, API 607, TS and ISO 9001
