Detailed Product Description

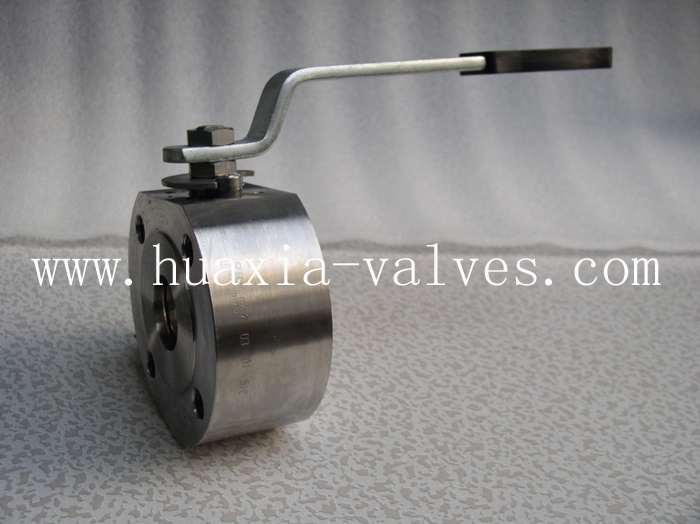

Forged Wafer Type Ball Valve

Applicable Standards

Ball valve : ANSI B16.34 / API6D / BS5351

Fire safe   : API 607

Anti static : API 608

Face to face:

Flange ends : ASME B 16.5

Inspection and test : API 598 / API 6D

Products Description :

Products name: forged Wafer Ball Valve

Size: 1/2-10

Pressure Rating:PN16/PN25/PN40 CLASS150/CLASS300/CLASS600

Blow-out proof stem& Fire safe construction& Anti static device

Ball Type: Floating Ball

Port Type: Standard bore

Material: A105, F11, F22, LF2, 304, 304L, 316L, 316L, 20# alloy, Monel and Hast. etc.

Ball and Stem: SS304, SS316,SS304L,SS316L,SS410,SS416.etc.

Valve Seat: PTFE / RPTFE / PCTFE / VITON / PEEK / DEVLON . etc.

Operation: Manual

Application:Offshore, Oil, Gas, Chemical, Petrochemical, Pulp, Paper, Water, Wastewater, Marine

Notes: The specifications can be designed and satisfied for customers' special requirements

We have obtained Certificates of CE, API 6D, API 607, TS and ISO 9001
